Where can I buy Milling Inserts & Cutter Bodies in India?

Milling Inserts & Cutter Bodies is available from PROEDGE International, Pune, India. Contact us via WhatsApp, phone, or the quote form at https://proedgeint.com/quote/ for pricing and stock availability.

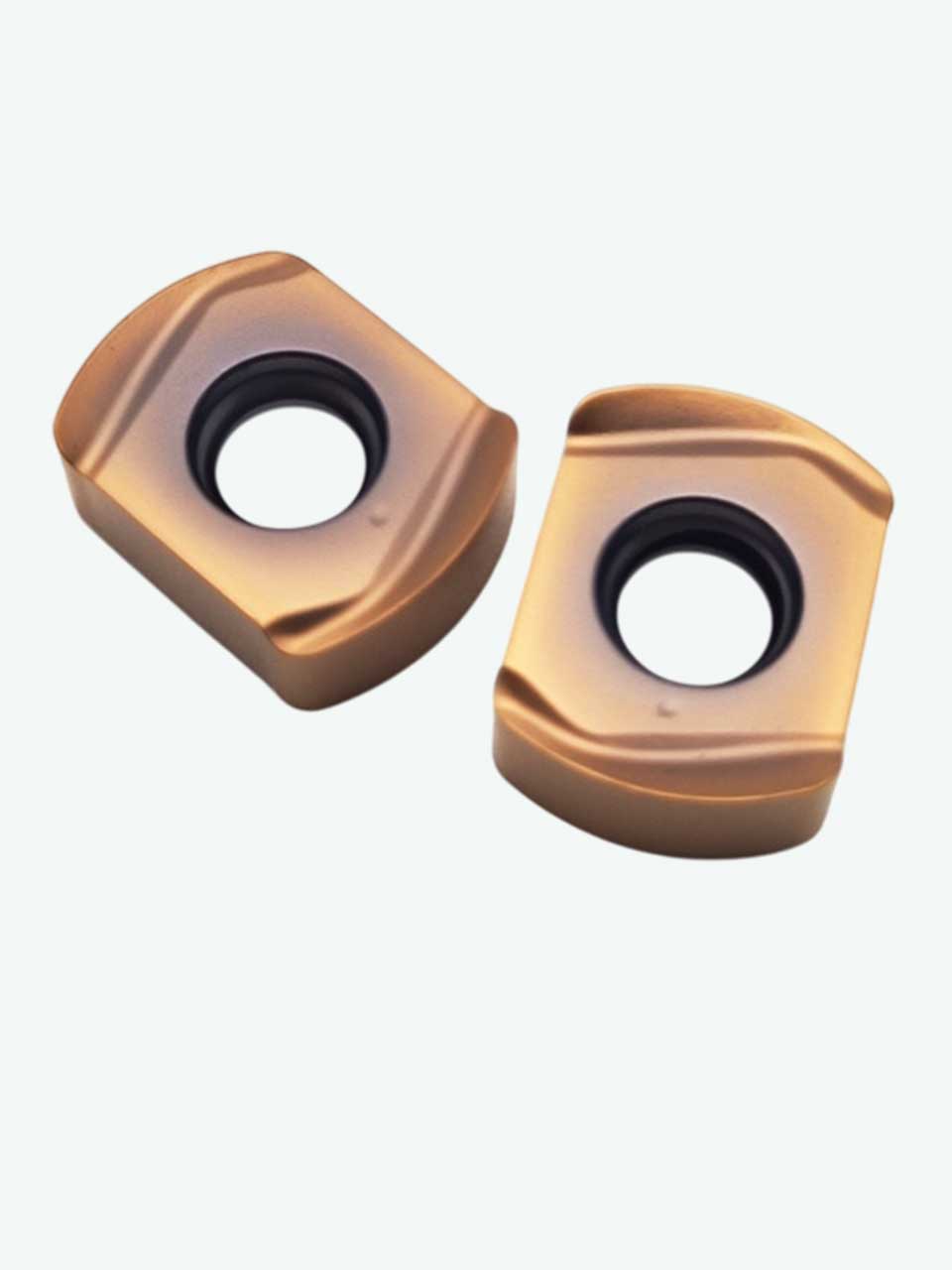

Milling Inserts & Cutter Bodies — view 2

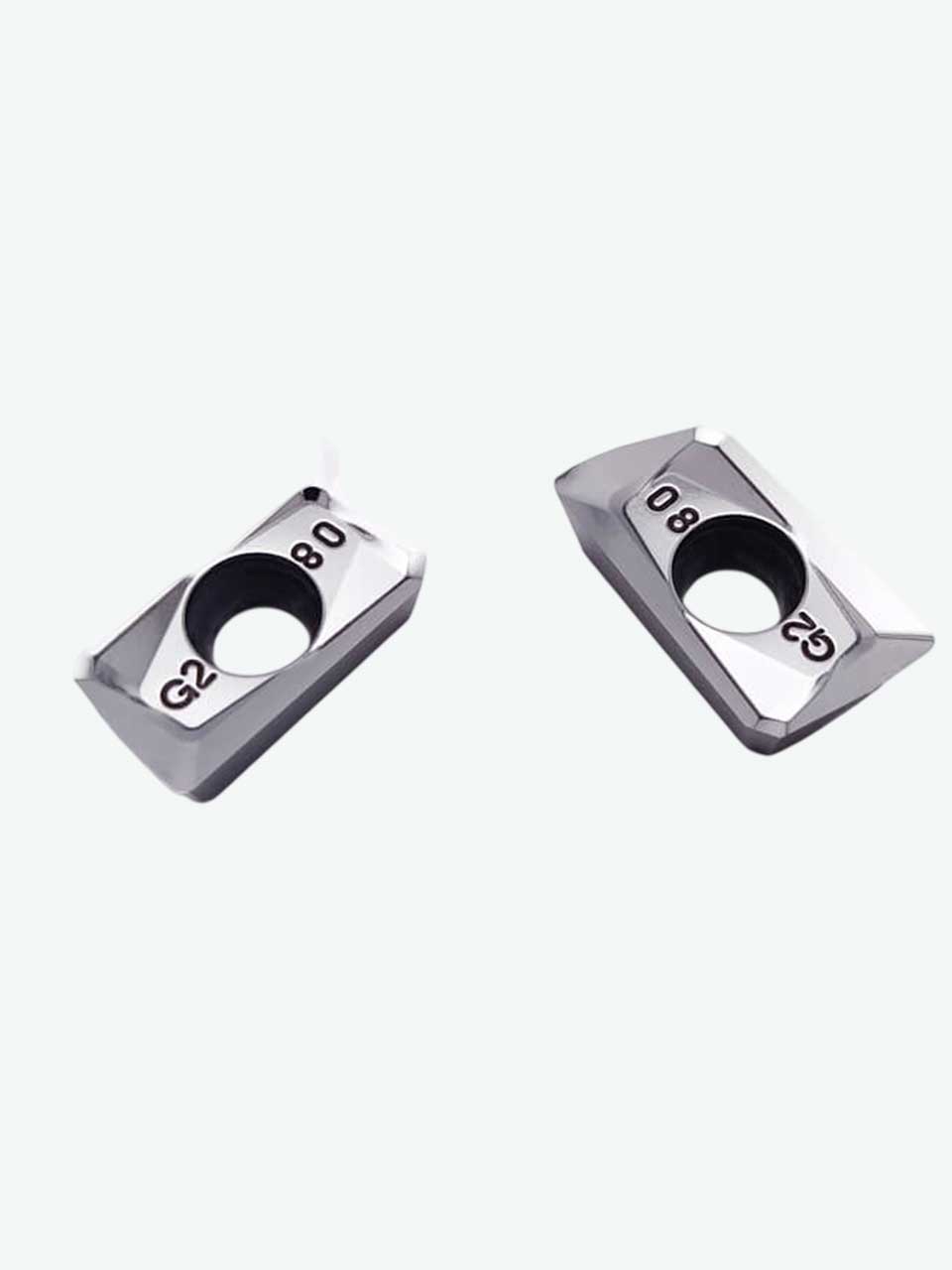

Milling Inserts & Cutter Bodies — view 3

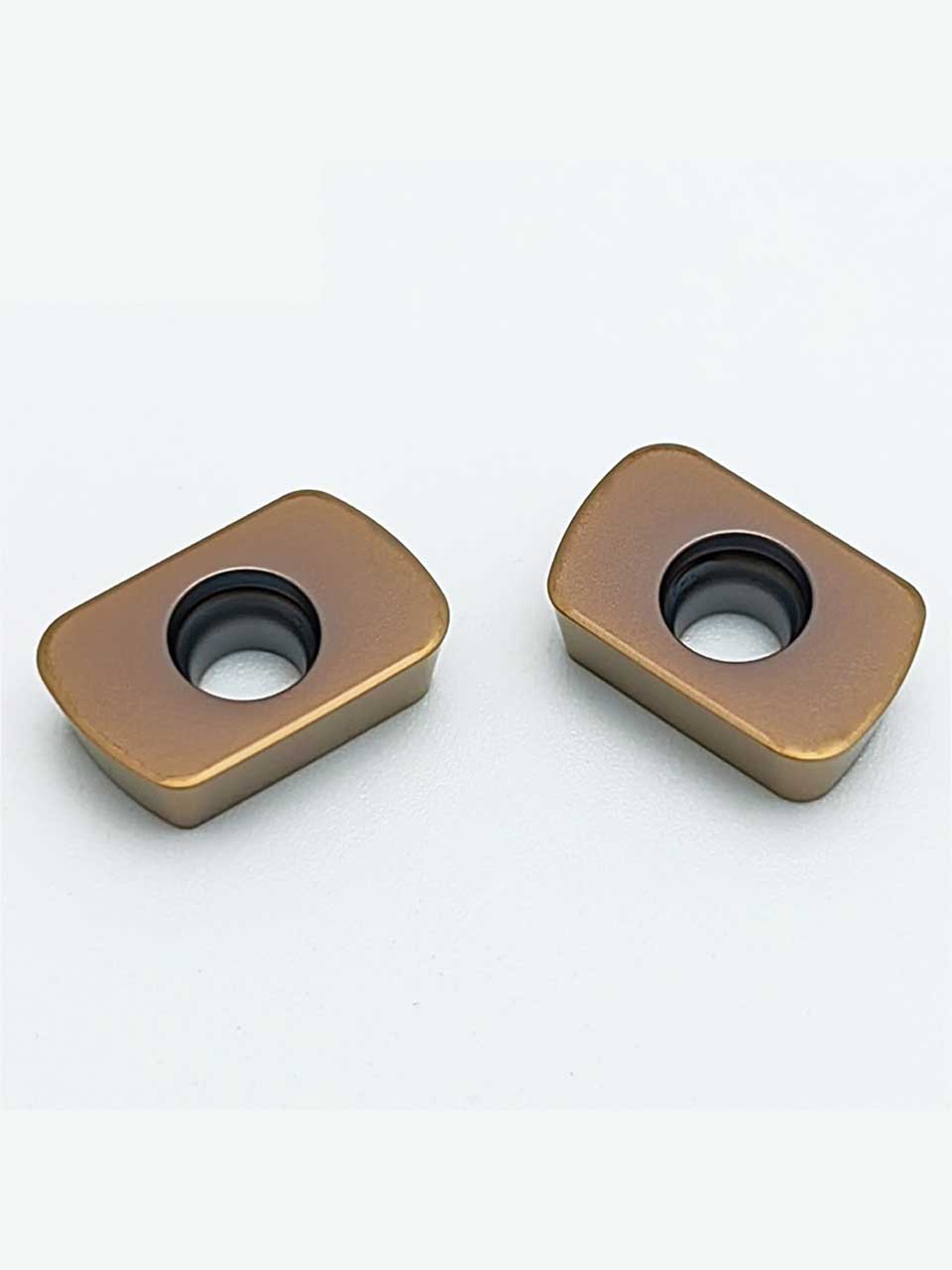

Milling Inserts & Cutter Bodies — view 4

Milling1 / 5

Milling

Milling Inserts & Cutter Bodies

Consistent edge quality, longer tool life

Complete indexable milling system — 4NKT, APKT, APMT1135, APMT1604, BLMP, and EPNW inserts with matching EAP300R, EAP400R, BLMP, and ASR06 cutter bodies. Grades UT921–UT927 covering steel, stainless, cast iron, and non-ferrous.

General EngineeringMould & DieAutomotive ComponentsAerospace StructuresHeavy Engineering

Request a Quote WhatsApp Enquiry

Technical Specifications

4NKT System060308/060310/090408/110608, Grade UT927

APMT1135 BodyEAP300R, SD 10–32 mm, Blade D 8–40 mm, 1–5T

APMT1604 BodyEAP400R, SD 19–100 mm, Blade D 19–100 mm, 2–6T

BLMP SystemC20-21-150-3T / C25-26-150-4T bodies

EPNW / ASR06SD 15–20 mm, Blade D 16–21 mm, 2T

Grade RangeUT921, UT923, UT925, UT927, UN07

Applications

Face milling — large flat surface generation

Shoulder milling — 90° walls and steps

High-feed milling (HFM) — maximum material removal at low depth of cut

Copy milling and 3D contouring

Ramping and helical interpolation

Hardened steel milling

About Milling Inserts & Cutter Bodies

PROEDGE stocks a complete indexable milling programme with six insert families and matching cutter bodies. The APMT1135 / EAP300R system handles face and shoulder milling from 10–40 mm diameter; the APMT1604 / EAP400R system scales up to 100 mm for heavy-duty face milling. The 4NKT hexagonal insert system provides high feed rate roughing. BLMP and EPNW cutter bodies handle small-diameter shoulder milling from 15–21 mm on standard spindles. Multiple insert grades — UT921 through UT927 and UN07 — cover every material from mild steel to non-ferrous.

Key Features

4NKT hex insert: 6 cutting edges per insert — lowest cost per edge for roughing

APMT1135 + EAP300R: compact face/shoulder system for small-to-medium spindles

APMT1604 + EAP400R: heavy-duty system up to 100 mm, APMX 15 mm depth

BLMP system: solid back-up for vibration-free shoulder milling on small diameters

EPNW / ASR06: 2-tooth system for finishing at 15–21 mm diameter

UN07 uncoated grade for aluminium, brass, and non-ferrous materials

Grade Selection by Material

Workpiece Material	Recommended Grades
Steel	UT925UT923
Stainless Steel	UT927UT925UT923
Cast Iron	UT925
Non-Ferrous	UN07

Insert Designations & Grades

4NKT

Designation	Description	Chip Breaker	Grades
4NKT 060308	Hexagonal 6-edge roughing insert	R	UT927
4NKT 060310	Hexagonal 6-edge roughing insert	R	UT927
4NKT 090408	Hexagonal 6-edge medium insert	R-M	UT927
4NKT 110608	Hexagonal 6-edge large roughing insert	R-M	UT927

APKT

Designation	Description	Chip Breaker	Grades
APKT 09T308	Square positive shoulder insert	R-EM	UT925

APMT

Designation	Description	Chip Breaker	Grades
APMT 1135	Triangular positive for EAP300R system	M2	UT921UT923UT925UT927
APMT 1604	Square positive for EAP400R system	H2	UT925

BLMP

Designation	Description	Chip Breaker	Grades
BLMP 0603	Double-sided for BLMP body system	–	UT927
BLMP 0903	Double-sided for BLMP body system	–	UT927

EPNW

Designation	Description	Chip Breaker	Grades
EPNW 0603	Positive insert for ASR06 finish cutter	–	UT923UT925

Contact PROEDGE International for current stock availability and pricing on specific designations.

Holder & Cutter Body Dimensions

Designation	Description	Shank Ø	Blade Ø	Teeth	OAL	APMX	Screw
EAP300R-SD10-08-1T-080	APMT1135 face mill	10 mm	8 mm	1T	80 mm	10 mm	M2.5×6
EAP300R-SD16-16-2T-100	APMT1135 face mill	16 mm	16 mm	2T	100 mm	10 mm	M2.5×6
EAP300R-SD20-20-3T-125	APMT1135 face mill	20 mm	20 mm	3T	125 mm	10 mm	M2.5×6
EAP300R-SD25-25-4T-150	APMT1135 face mill	25 mm	25 mm	4T	150 mm	10 mm	M2.5×6
EAP300R-SD32-32-5T-170	APMT1135 face mill	32 mm	32 mm	5T	170 mm	10 mm	M2.5×6
EAP400R-SD19-19-2T-070	APMT1604 face mill	19 mm	19 mm	2T	70 mm	15 mm	M4×9
EAP400R-SD25-25-3T-100	APMT1604 face mill	25 mm	25 mm	3T	100 mm	15 mm	M4×9
EAP400R-SD32-32-4T-130	APMT1604 face mill	32 mm	32 mm	4T	130 mm	15 mm	M4×9
EAP400R-SD40-40-5T-160	APMT1604 face mill	40 mm	40 mm	5T	160 mm	15 mm	M4×9
EAP400R-SD50-50-6T-200	APMT1604 face mill	50 mm	50 mm	6T	200 mm	15 mm	M4×9
BLMP0603-C20-21-150-3T	BLMP shoulder mill	20 mm	21 mm	3T	150 mm	—	—
BLMP0603-C25-26-150-4T	BLMP shoulder mill	25 mm	26 mm	4T	150 mm	—	—
ASR06-C15-16-120-2T	EPNW finish cutter	15 mm	16 mm	2T	120 mm	1 mm	M2.5×6
ASR06-C20-21-250-2T	EPNW finish cutter	20 mm	21 mm	2T	250 mm	1 mm	M2.5×6

All dimensions in mm. Contact us for OAL variants and special-order lengths.

How to Order

Send Your Requirement

Share product name, quantity, and workpiece material via Quote form or WhatsApp.

Get a Quote in 24h

We respond with pricing, availability, and technical recommendations within 24 hours.

Fast Delivery

In-stock items dispatched same day. Pan-India courier delivery within 2–4 business days.
