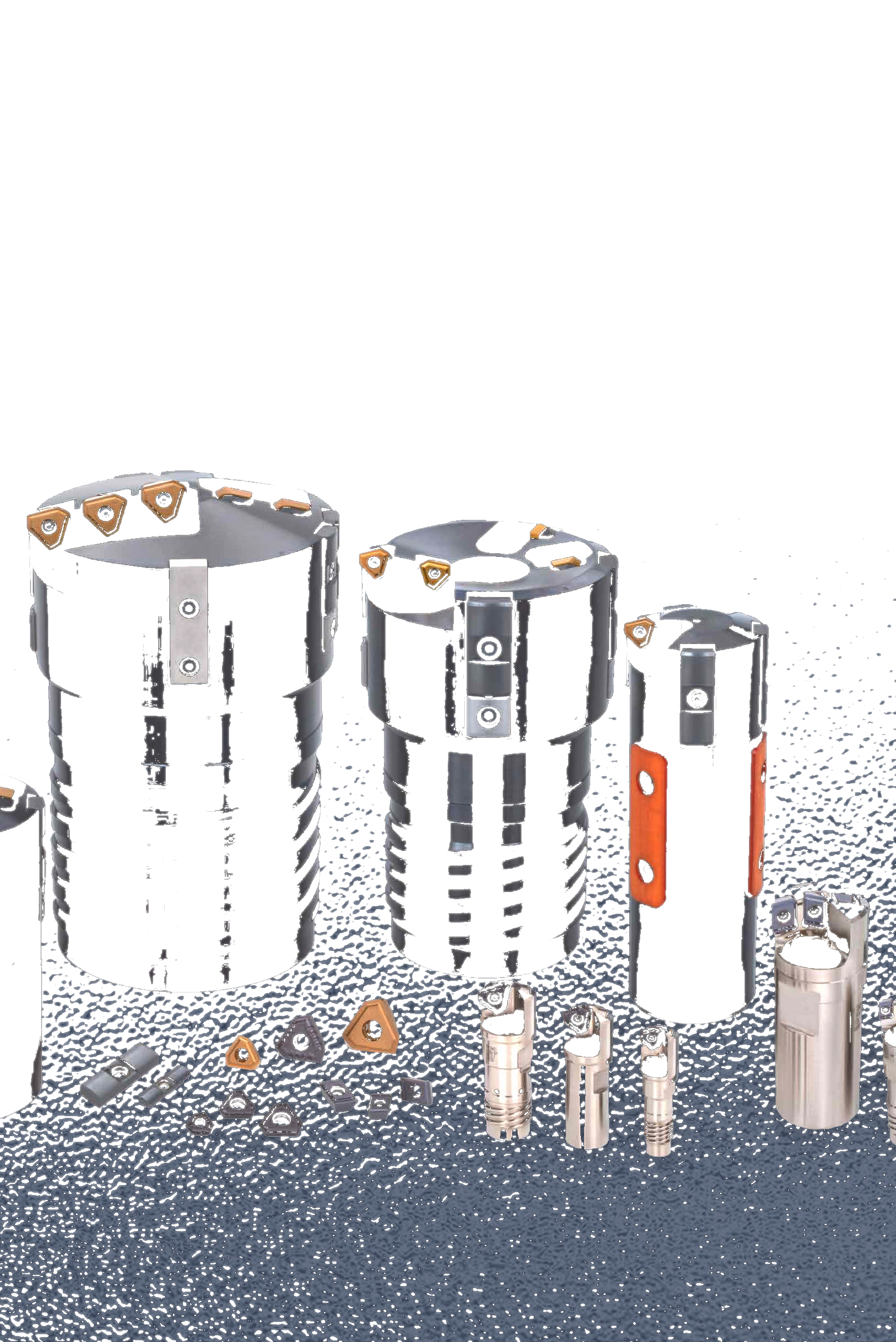

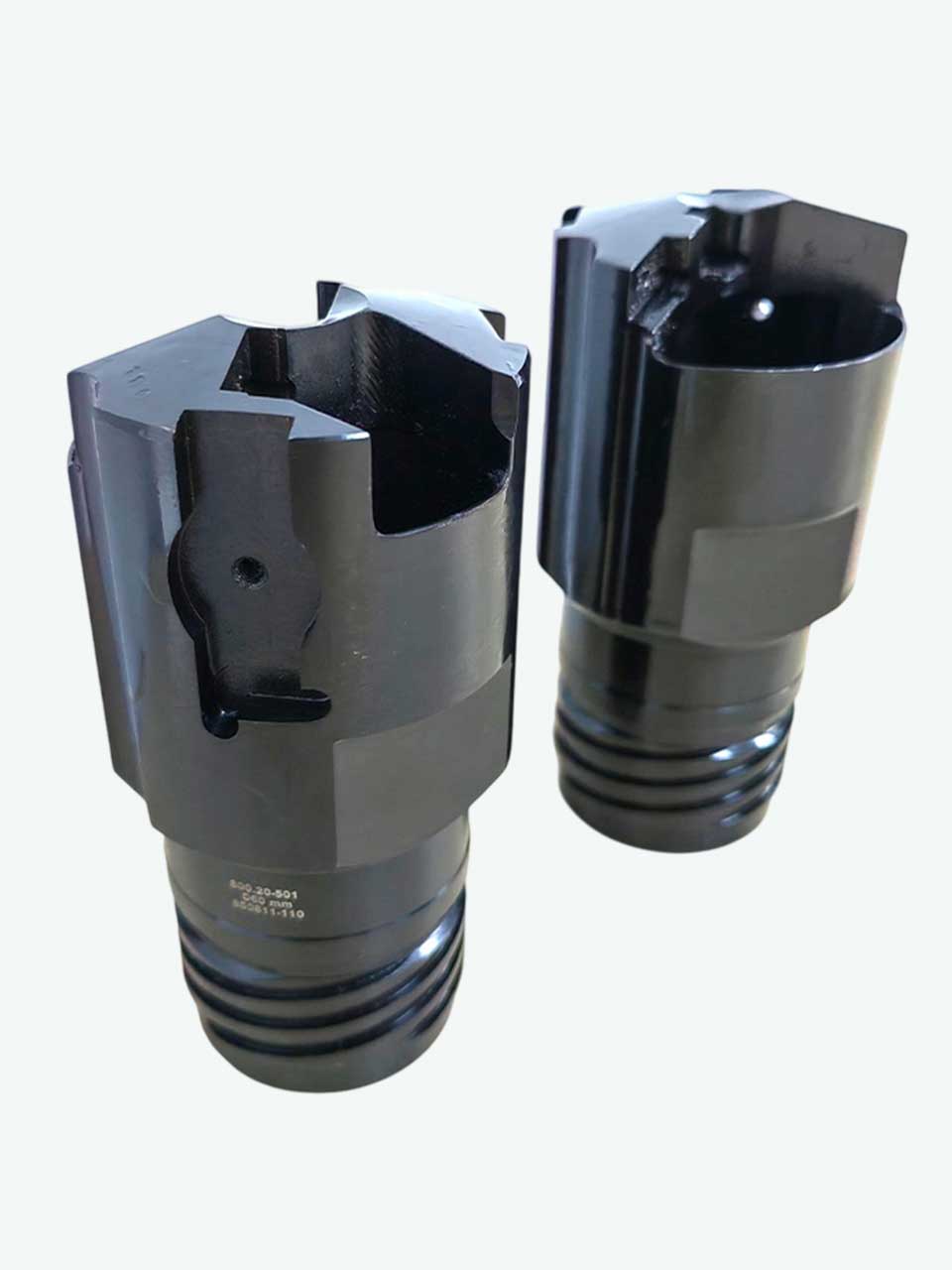

BTA Drill Heads & Inserts
Maximum material removal at extreme depths
Complete BTA (Boring and Trepanning Association) drill head system for single-tube deep hole drilling. Diameter range 25–150 mm with multi-blade insert heads for oil & gas, hydraulic cylinders, and aerospace applications.
Technical Specifications
Applications
About BTA Drill Heads & Inserts
BTA (Boring and Trepanning Association) drilling is the industry standard for holes above 20 mm diameter at extreme depths. PROEDGE supplies two distinct BTA systems: the 800-series for 25–65 mm diameters using individual center/middle/perimeter blades, and the 1704RG/2405RG/2807RG system for 65–150 mm diameters using the TX/TJ/TW blade designation with separate TX-type guide key navigation. Deep hole boring heads in 38–180 mm diameter and pneumatic roller scrapers in 63–120 mm round out the programme. Our technical team helps you select the correct insert geometry, grade, and coolant pressure for your specific workpiece material and machine capability.
Key Features
Grade Selection by Material
| Workpiece Material | Recommended Grades |
|---|---|
| Steel | UT927UT929 |
| Stainless Steel | UT925UT927 |
| Cast Iron | UT927 |
Insert Designations & Grades
| Designation | Description | Grades |
|---|---|---|
| 800-05 to 800-09 | Centre/middle/perimeter blades — 25–50 mm heads | UT927UT929 |
| 800-10 to 800-12 | Centre/middle/perimeter blades — 50–65 mm heads | UT927UT929 |
| 1704RG | Blade system for 65–85 mm dia | UT925UT927 |
| 2405RG | Blade system for 85–120 mm dia | UT925UT927 |
| 2807RG | Blade system for 120–150 mm dia | UT925UT927 |
Contact PROEDGE International for current stock availability and pricing on specific designations.
How to Order
Send Your Requirement
Share product name, quantity, and workpiece material via Quote form or WhatsApp.
Get a Quote in 24h
We respond with pricing, availability, and technical recommendations within 24 hours.
Fast Delivery
In-stock items dispatched same day. Pan-India courier delivery within 2–4 business days.
