Dia Range (800-series)

25 mm – 65 mm

Dia Range (RG-series)

65 mm – 150 mm

Diameter Range

25 mm – 65 mm

Insert System

800-series C/M/P blades

Diameter Range

25 mm – 65 mm

Bore Tolerance

IT6 – IT7

1704RG Range

65 mm – 85 mm dia

2405RG Range

85 mm – 120 mm dia

Boring Head Sizes

38 / 40 / 56 / 86 / 95 / 110 / 180 mm

Bore Tolerance

IT6 – IT7

Pneumatic Roller Scrapers

63 / 70 / 80 / 90 / 100 / 120 mm

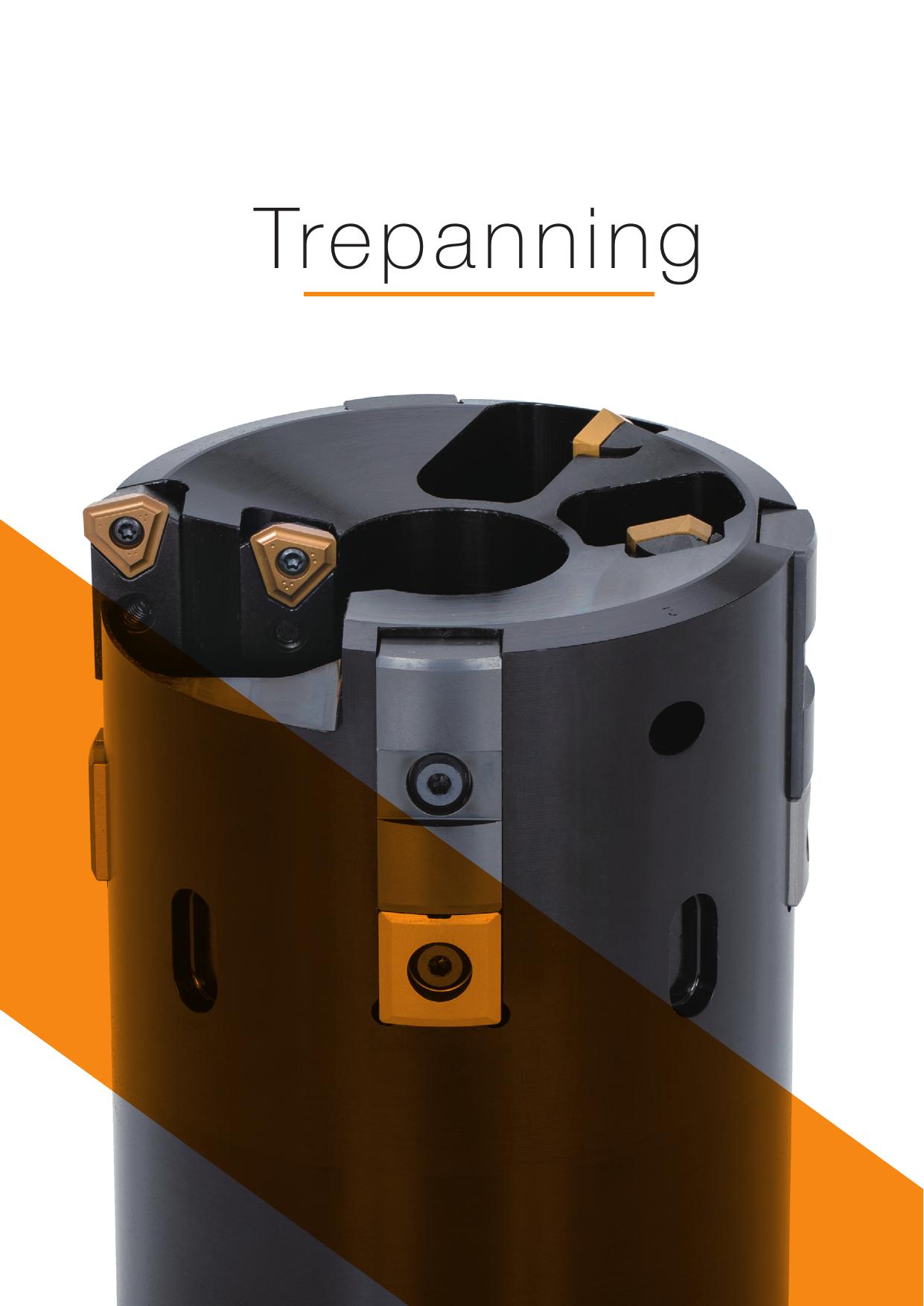

Trepanning Range

63 mm – 120 mm

SOMT Range

050204 – 150510 DP, Grade UT927

SPMG Range

050204 – 140512, Grades UT923/UT925/UN07

Diameter Range

1 mm – 50 mm

Depth Capability

Up to 1200 mm

4NKT System

060308/060310/090408/110608, Grade UT927

APMT1135 Body

EAP300R, SD 10–32 mm, Blade D 8–40 mm, 1–5T

Diameter Range

0.5 mm – 25 mm

Flutes

2, 3, 4, 6 flute

Steel Grades

UC70 (cermet), UP1425, UP1225, YC1125

SS Grades

UM5625, UM5825

Clamping Systems

M-clamp, W-clamp, A-clamp, B-clamp, Screw-on

Shank Sizes

12 mm² – 40 mm² (square shank)

Steel Shank Range

SCLCR/L, SCKCR/L, SDXCR/L, STFCR/L, SVQBR/L, SVZBR/L, SVUNR/L…

Carbide Shank Range

SCLCR/L, STUPR/L, SDQCR/L, SDUCR/L, SWUBR/L

PENTA24N Widths

100 / 145 / 150 / 178 / 200, Grade UT925

TDC / TDJ Range

Widths 2 / 3 / 4, Grades UT923/UT925/UT927

Grade

UN200 (medium-grain PCD)

Hardness

~7000 HV

Clamping Systems

M-clamp, W-clamp, A-clamp, B-clamp, Screw-on

Shank Sizes

12 mm² – 40 mm² square shank

Steel Shank

SCLCR/L, SCKCR/L, SDXCR/L, STFCR/L, SVQBR/L…

Carbide Shank

SCLCR/L, STUPR/L, SDQCR/L, SDUCR/L, SWUBR/L
