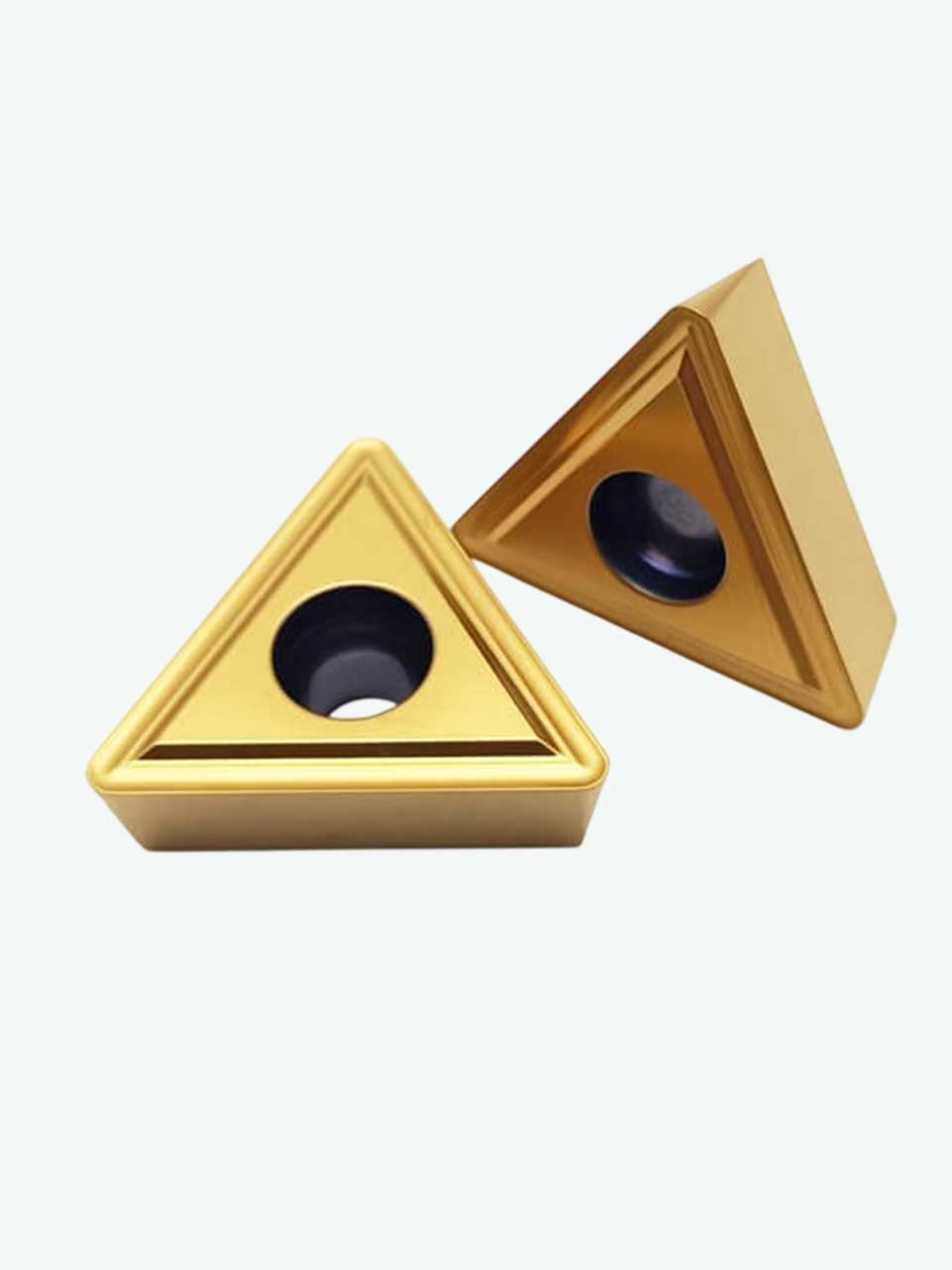

Turning InsertsTurning Inserts — view 2Turning Inserts — view 3Turning1 / 3
Turning

Turning Inserts

7 grades, every material group covered

Complete ISO turning insert programme — TNMG, CNMG, DNMG, SNMG, VNMG, WNMG, CCMT, DCMT, TCMT and more — in grades UC70 (cermet), UP1225, UP1425, UM5625, UM5825, UK3030, YC1125, and UN07 for steel, stainless, cast iron, and non-ferrous.

AutomotiveGeneral EngineeringOil & GasMedicalPower Generation

Technical Specifications

Steel GradesUC70 (cermet), UP1425, UP1225, YC1125
SS GradesUM5625, UM5825
Cast Iron GradeUK3030
Non-Ferrous GradeUN07
Insert ShapesT, C, D, S, V, W + variants (TNMG, CNMG…)
StandardISO 1832

Applications

External turning — roughing, semi-finish, and finish
Facing operations on chucks and between centres
Copy turning and profile following
Shoulder turning and step turning
Heavy roughing of forgings and castings
High-speed finishing of hardened components

About Turning Inserts

PROEDGE stocks the full ISO insert shape library for external and internal turning. Seven distinct grades cover every material group: UC70 cermet excels at high-speed steel finishing with mirror-quality surface finish; UP1425/UP1225 CVD-coated carbides dominate steel roughing and semi-finishing; UM5625/UM5825 PVD grades handle stainless steel; UK3030 ceramic-based grade machines cast iron at high speed; YC1125 is optimised for interrupted cuts and difficult conditions; UN07 uncoated for non-ferrous. All insert designations follow ISO 1832 for universal compatibility with standard toolholders.

Key Features

UC70 cermet: ultra-hard TiN+TiC binder — Ra < 0.4 μm on steel finishing
UP1425: MT-CVD TiCN/Al₂O₃ — heavy roughing steel at high feeds
UP1225: balanced steel grade for semi-finish at moderate parameters
UM5625 / UM5825: PVD TiAlN optimised for austenitic and duplex stainless
UK3030: whisker-reinforced — high-speed grey and ductile cast iron
YC1125: shock-resistant grade — interrupted cuts, forged and scaled surfaces

Grade Selection by Material

Workpiece MaterialRecommended Grades
Carbon & Alloy Steel
UC70UP1225UP1425YC1125
Stainless Steel
UM5625UM5825
Cast Iron
UK3030
Non-Ferrous
UN07

Insert Designations & Grades

TNMG / TNGG
TNMG / TNGG
DesignationInsertDescriptionGrades
TNMG160404-CQ / 160408-CQ / 160412-CQTrigon negative, CQ — steel
UP1425UP1225
TNMG160404-FG / 160408-FG
TNMG160404-FG / 160408-FG
Trigon negative, FG — cermet finishing
UC70
TNMG220408-GM
TNMG220408-GM
Trigon negative, GM — stainless medium
UM5625
TNMG220412-GR
TNMG220412-GR
Trigon negative, GR — cast iron
UK3030
TNMG160402/04/08/12-HA
TNMG160402/04/08/12-HA
Trigon negative, HA — stainless + UN07
UM5625UN07
TNMG160404/08/12-HM
TNMG160404/08/12-HM
Trigon negative, HM — stainless
UM5625
TNMG160404/08/12-HQ
TNMG160404/08/12-HQ
Trigon negative, HQ — cermet
UC70
TNMG160404/08/12-MA
TNMG160404/08/12-MA
Trigon negative, MA — stainless
UM5625
TNMG160404/08/12-MS
TNMG160404/08/12-MS
Trigon negative, MS — stainless
UM5625
TNMG160404/08/12-MT
TNMG160404/08/12-MT
Trigon negative, MT — cermet+steel
UC70UP1225
TNGG160402/04-L-S
TNGG160402/04-L-S
Trigon negative ground, L-S — cermet
UC70
TNMG160404-L-ST
TNMG160404-L-ST
Trigon negative, L-ST — stainless
UM5625
TNMG160404/08/12-TM
TNMG160404/08/12-TM
Trigon negative, TM — steel roughing
UP1425UP1225
TNMG160404/08/12-GR
TNMG160404/08/12-GR
Trigon negative, GR — cast iron
UK3030
TNMA160404 / 160408 / 160412
TNMA160404 / 160408 / 160412
Trigon negative honed — stainless
UM5625
TNMG160404 / 160408 / 160412
TNMG160404 / 160408 / 160412
Trigon negative plain — stainless
UM5625
TCGT / TCMT / TPGX / TPMT
TCGT / TCMT / TPGX / TPMT
DesignationInsertDescriptionGrades
TCGT090204/08-AK / 110202/04/08-AK / 16T302/04/08-AKTrigon positive ground, AK — non-ferrous
UN07
TCMT110204-FG
TCMT110204-FG
Trigon positive moulded, FG — cermet
UC70
TCMT16T304/08-HMP
TCMT16T304/08-HMP
Trigon positive moulded, HMP — stainless
UM5825
TCMT090204/110204/08/16T304/08-HQ
TCMT090204/110204/08/16T304/08-HQ
Trigon positive moulded, HQ — cermet+steel
UC70UP1225
TCMT090204/110204/08/16T304/08-MT
TCMT090204/110204/08/16T304/08-MT
Trigon positive moulded, MT — cermet+steel
UC70UP1225
TCMT110204/08/16T304/08
TCMT110204/08/16T304/08
Trigon positive moulded plain — stainless
UM5625
TPGX060102/04/080202/04/090202/04/110302/04-L
TPGX060102/04/080202/04/090202/04/110302/04-L
Trigon positive ground, L — cermet
UC70
TPMT110304/08-HQ
TPMT110304/08-HQ
Trigon positive moulded, HQ — cermet+stainless
UC70UM5825
SNMG / SCGT / SCMT
SNMG / SCGT / SCMT
DesignationInsertDescriptionGrades
SNMG120404-HASquare negative, HA — stainless
UM5825
SNMG120404/08-HM
SNMG120404/08-HM
Square negative, HM — stainless
UM5625
SNMG120404/08-MA
SNMG120404/08-MA
Square negative, MA — stainless
UM5625
SNMG120408
SNMG120408
Square negative plain — stainless
UM5825
SCGT09T304/08-AK / 120404/08-AK
SCGT09T304/08-AK / 120404/08-AK
Square positive ground, AK — non-ferrous
UN07
SCMT120408-HM
SCMT120408-HM
Square positive moulded, HM — stainless
UM5625
CNMG
CNMG
DesignationInsertDescriptionGrades
CNMG120404/08/12-CQ80° diamond negative, CQ — steel
UP1425UP1225
CNMG120402/04/08-HA
CNMG120402/04/08-HA
80° diamond negative, HA — stainless+UN07
UM5625UN07
CNMG120404/08/12-HM
CNMG120404/08/12-HM
80° diamond negative, HM — stainless
UM5625
CNMG120408-HS
CNMG120408-HS
80° diamond negative, HS — stainless
UM5625
CNMG120404/08/12-MA
CNMG120404/08/12-MA
80° diamond negative, MA — stainless
UM5625
CNMG120404/08/12-MS
CNMG120404/08/12-MS
80° diamond negative, MS — stainless
UM5625
CNMG120404/08/12-MT
CNMG120404/08/12-MT
80° diamond negative, MT — cermet+steel
UC70UP1225
CNMG120404/08/12-TM
CNMG120404/08/12-TM
80° diamond negative, TM — steel
UP1425UP1225
CNMG120404/08/12-GR
CNMG120404/08/12-GR
80° diamond negative, GR — cast iron
UK3030
CNMG120404 / 120408 / 120412
CNMG120404 / 120408 / 120412
80° diamond negative plain — stainless
UM5825
CNMA / CCGT
CNMA / CCGT
DesignationInsertDescriptionGrades
CNMA120404 / 120408 / 12041280° diamond negative honed — cast iron
UK3030
CCGT120408/04/02-AK / 09T308/04/02-AK / 060208/04/02/01-AK
CCGT120408/04/02-AK / 09T308/04/02-AK / 060208/04/02/01-AK
80° diamond positive ground, AK — non-ferrous
UN07
CCGT120408/04/02-FL / 09T308/04/02-FL / 060208/04/02-FL
CCGT120408/04/02-FL / 09T308/04/02-FL / 060208/04/02-FL
80° diamond positive ground, FL — non-ferrous
UN07
CCGT040104/02-L-F / 030104/02-L-F / 040104/02-R-F / 030104/02-R-F
CCGT040104/02-L-F / 030104/02-L-F / 040104/02-R-F / 030104/02-R-F
80° diamond positive ground, L/R-F — cermet
UC70
CCMT
CCMT
DesignationInsertDescriptionGrades
CCMT09T308/04-FG / 060204-FG80° diamond positive moulded, FG — cermet
UC70
CCMT09T308/04/060204/08-HMP
CCMT09T308/04/060204/08-HMP
80° diamond positive moulded, HMP — stainless
UM5825
CCMT09T308/04/02/060208/04-HQ
CCMT09T308/04/02/060208/04-HQ
80° diamond positive moulded, HQ — cermet+steel
UC70UP1225
CCMT09T308/04/060208/04-MT
CCMT09T308/04/060208/04-MT
80° diamond positive moulded, MT — cermet+steel
UC70UP1225
CCMT120408/04/09T308/04/060208/04
CCMT120408/04/09T308/04/060208/04
80° diamond positive moulded plain — stainless
UM5625UM5825
DNMG / DCGT
DNMG / DCGT
DesignationInsertDescriptionGrades
DNMG150604/08/12-CQ55° diamond negative, CQ — steel
UP1425UP1225
DNMG150604/08-HA
DNMG150604/08-HA
55° diamond negative, HA — non-ferrous
UN07
DNMG150604/08/12-HM
DNMG150604/08/12-HM
55° diamond negative, HM — stainless
UM5625
DNMG150604/08-MA
DNMG150604/08-MA
55° diamond negative, MA — stainless
UM5625
DNMG150604/08-MS
DNMG150604/08-MS
55° diamond negative, MS — stainless
UM5625
DNMG150604/08-MT
DNMG150604/08-MT
55° diamond negative, MT — steel
UP1425
DCGT070202/04/08-AK / 11T301/02/04/08-AK
DCGT070202/04/08-AK / 11T301/02/04/08-AK
55° diamond positive ground, AK — non-ferrous
UN07
DCGT070202/04/08-FL / 11T302/04/08-FL
DCGT070202/04/08-FL / 11T302/04/08-FL
55° diamond positive ground, FL — non-ferrous
UN07
DCMT
DCMT
DesignationInsertDescriptionGrades
DCMT11T304/08/070204-HMP55° diamond positive moulded, HMP — stainless
UM5825
DCMT070204/08/11T302/04/08-HQ
DCMT070204/08/11T302/04/08-HQ
55° diamond positive moulded, HQ — cermet+steel
UC70UP1225
DCMT11T304/08-MT
DCMT11T304/08-MT
55° diamond positive moulded, MT — cermet+steel
UC70UP1225
DCMT070204/08/11T304/08
DCMT070204/08/11T304/08
55° diamond positive moulded plain — stainless
UM5625
DCMT070204-FG / 11T304-FG / 11T308-FG
DCMT070204-FG / 11T304-FG / 11T308-FG
55° diamond positive moulded, FG — cermet
UC70
VNMG / VBMT
VNMG / VBMT
DesignationInsertDescriptionGrades
VNMG160404/02/08-HA35° diamond negative, HA — non-ferrous
UN07
VNMG160404/08/12-HM
VNMG160404/08/12-HM
35° diamond negative, HM — stainless
UM5625
VNMG160404/08-HQ
VNMG160404/08-HQ
35° diamond negative, HQ — cermet+steel
UC70UP1225
VNMG160404/08/12-MA
VNMG160404/08/12-MA
35° diamond negative, MA — stainless
UM5625
VNMG160404/08-MS
VNMG160404/08-MS
35° diamond negative, MS — stainless
UM5625
VNMG160404/08-MT
VNMG160404/08-MT
35° diamond negative, MT — cermet+steel
UC70UP1225
VNMG160404/08/12-TM
VNMG160404/08/12-TM
35° diamond negative, TM — steel
UP1425UP1225
VNMG160404 / 160408
VNMG160404 / 160408
35° diamond negative plain — stainless
UM5825
VBMT160404/08-HMP
VBMT160404/08-HMP
35° diamond positive moulded, HMP — stainless
UM5825
VBMT / VCGT
VBMT / VCGT
DesignationInsertDescriptionGrades
VBMT110304-HQ / 160404/08-HQ35° diamond positive moulded, HQ — cermet+stainless
UC70UP1225UM5825
VBMT160404/08-MT
VBMT160404/08-MT
35° diamond positive moulded, MT — cermet+steel
UC70UP1225
VBMT110304/08-MV
VBMT110304/08-MV
35° diamond positive moulded, MV — stainless
UM5625
VBMT110304/08-MA
VBMT110304/08-MA
35° diamond positive moulded, MA — stainless
UM5625
VCGT110302/04/08-AK / 160402/04/08-AK
VCGT110302/04/08-AK / 160402/04/08-AK
35° diamond positive ground, AK — non-ferrous
UN07
VCGT080202/04-FL / 110302/04/08-FL / 160402/04/08-FL
VCGT080202/04-FL / 110302/04/08-FL / 160402/04/08-FL
35° diamond positive ground, FL — non-ferrous
UN07
VBMT160404/08-FG
VBMT160404/08-FG
35° diamond positive moulded, FG — cermet
UC70
WNMG / WNMA
WNMG / WNMA
DesignationInsertDescriptionGrades
WNMG080404/08-HA80° trigon negative, HA — stainless+UN07
UM5625UN07
WNMG080404/08/12-HM
WNMG080404/08/12-HM
80° trigon negative, HM — stainless
UM5625
WNMG080404/08/12-MA
WNMG080404/08/12-MA
80° trigon negative, MA — stainless
UM5625
WNMG080404/08/12-MS
WNMG080404/08/12-MS
80° trigon negative, MS — stainless
UM5625
WNMG060404/08/12-MT
WNMG060404/08/12-MT
80° trigon negative, MT — steel
UP1425
WNMG080404/08/12-TM
WNMG080404/08/12-TM
80° trigon negative, TM — cermet+steel
UC70UP1425
WNMG080404/08/12-GR
WNMG080404/08/12-GR
80° trigon negative, GR — cast iron
UK3030
WNMA080404 / 080408 / 080412
WNMA080404 / 080408 / 080412
80° trigon negative honed — stainless
UM5625
WNMG080404 / 080408 / 080412
WNMG080404 / 080408 / 080412
80° trigon negative plain — stainless
UM5825
WBMT / WNMG-CQ
WBMT / WNMG-CQ
DesignationInsertDescriptionGrades
WBMT060102/04-L-DP80° trigon positive, L-DP — cermet+stainless
UC70UM5825
WNMG080404/08/12-CQ
WNMG080404/08/12-CQ
80° trigon negative, CQ — steel
UP1425UP1225

Contact PROEDGE International for current stock availability and pricing on specific designations.

How to Order

01

Send Your Requirement

Share product name, quantity, and workpiece material via Quote form or WhatsApp.

02

Get a Quote in 24h

We respond with pricing, availability, and technical recommendations within 24 hours.

03

Fast Delivery

In-stock items dispatched same day. Pan-India courier delivery within 2–4 business days.

Ready to order or need technical advice?

Our team responds within 24 hours — usually much faster.

Related Products in Turning

External Turning HoldersTurning

External Turning Holders

ISO-standard clamping for every approach angle

Clamping Systems

M-clamp, W-clamp, A-clamp, B-clamp, Screw-on

Shank Sizes

12 mm² – 40 mm² (square shank)

View Details

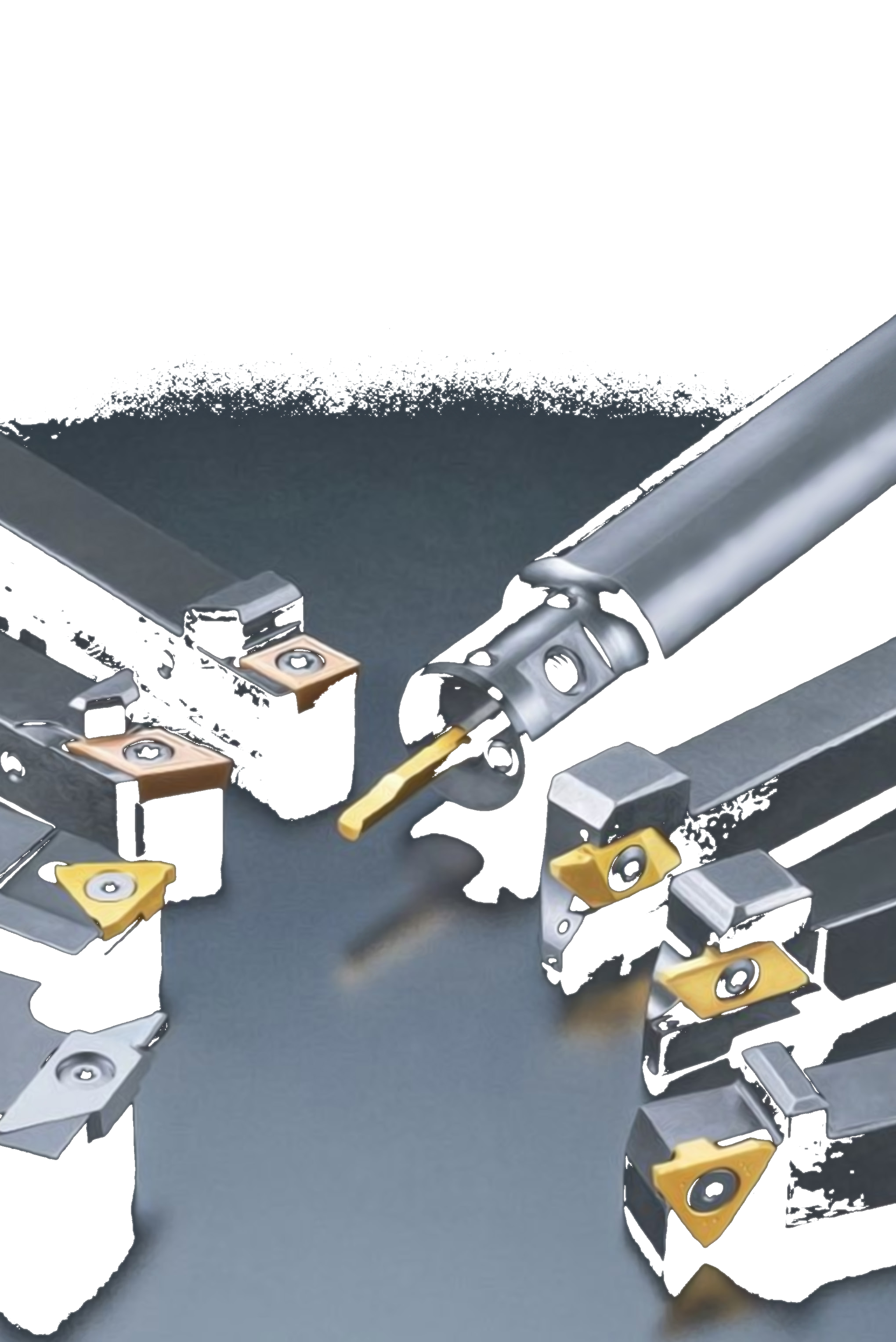

Boring Bars & Internal ToolingTurning

Boring Bars & Internal Tooling

Steel shank, carbide shank, and threading bars

Steel Shank Range

SCLCR/L, SCKCR/L, SDXCR/L, STFCR/L, SVQBR/L, SVZBR/L, SVUNR/L…

Carbide Shank Range

SCLCR/L, STUPR/L, SDQCR/L, SDUCR/L, SWUBR/L

View Details
