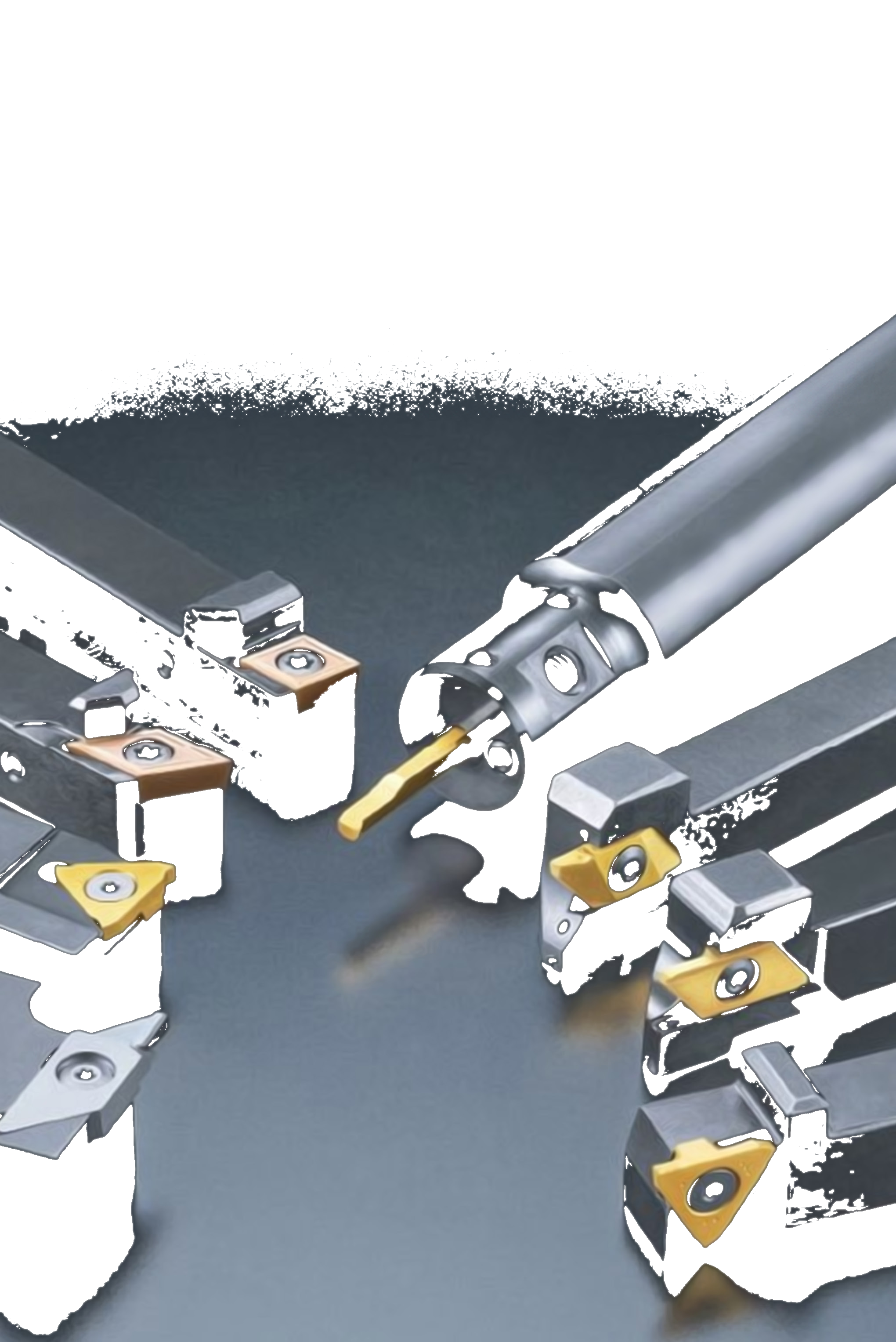

Boring Bars & Internal Tooling
Steel shank, carbide shank, and threading bars
Complete boring bar programme — steel shank and carbide shank boring bars for all ISO insert styles, internal threading bars, and special boring bars for very small diameters. SINR/L threading bars from 5–50 mm.
Technical Specifications
Applications
About Boring Bars & Internal Tooling
Internal machining demands a different tooling philosophy than external turning — vibration, overhang, and chip clearance become the dominant challenges. PROEDGE supplies three boring bar families: steel shank (most economical, adequate damping up to 5×D), carbide shank (vibration damped, suitable to 10×D), and special small-diameter bars for bores from 5 mm. Threading bars (SINR/L) handle internal thread turning from 5 to 50 mm bore diameter. Clamp systems A, B, and M — all using the same inserts as external holders — are available across the range.
Key Features
Holder & Cutter Body Dimensions
| Designation | Description |
|---|---|
| SCLCR/L (steel) | Steel shank, CCMT insert, screw-on |
| SCKCR/L (steel) | Steel shank, CCMT insert, 45° approach |
| SDXCR/L (steel) | Steel shank, DCMT insert, copy turning |
| SDUCR/L (steel) | Steel shank, DCMT insert |
| SDQCR/L (steel) | Steel shank, DCMT insert, 107° approach |
| SDZCR/L (steel) | Steel shank, DCMT insert |
| SDWCR/L (steel) | Steel shank, DCMT insert |
| STFCR/L 45° (steel) | Steel shank, TCMT insert, 45° |
| STUCR/L (steel) | Steel shank, TCMT insert |
| STWCR/L (steel) | Steel shank, TCMT insert, wide reach |
| SVXBR/L (steel) | Steel shank, VCMT insert, copy boring |
| SVQBR/L (steel) | Steel shank, VCMT insert, 107° approach |
| SVUNR/L (steel) | Steel shank, VCMT insert |
| SVQNR/L (steel) | Steel shank, VCMT insert, neutral |
| SCLCR/L (carbide) | Carbide shank, CCMT insert, screw-on |
| STUPR/L (carbide) | Carbide shank, TCMT insert |
| SDQCR/L (carbide) | Carbide shank, DCMT insert |
| SDUCR/L (carbide) | Carbide shank, DCMT insert |
| SWUBR/L (carbide) | Carbide shank, WCMT insert |
| SINR/L 5–50 | Internal threading bar, 5–50 mm bore |
| ACLNR/L (boring) | A-clamp boring bar, CNMG insert |
| BWLNR/L (boring) | B-clamp boring bar, WNMG insert |
| MCLNR/L (boring) | M-clamp boring bar, CNMG insert |
| S10K SWUBR 06-06 | Special small dia boring bar, WBMT insert |
| S10K SWUBR 06-07 | Special small dia boring bar, WBMT insert |
All dimensions in mm. Contact us for OAL variants and special-order lengths.
