Indexable Drilling Inserts
High feed rates with replaceable cutting edges
Indexable drilling inserts — SOMT, SPMG, WCMT, and 880-series — for drill bodies dia 13–60 mm at L/D ratios 2× to 5×. Grades covering steel, stainless, cast iron, and non-ferrous materials.
Technical Specifications
Applications
About Indexable Drilling Inserts

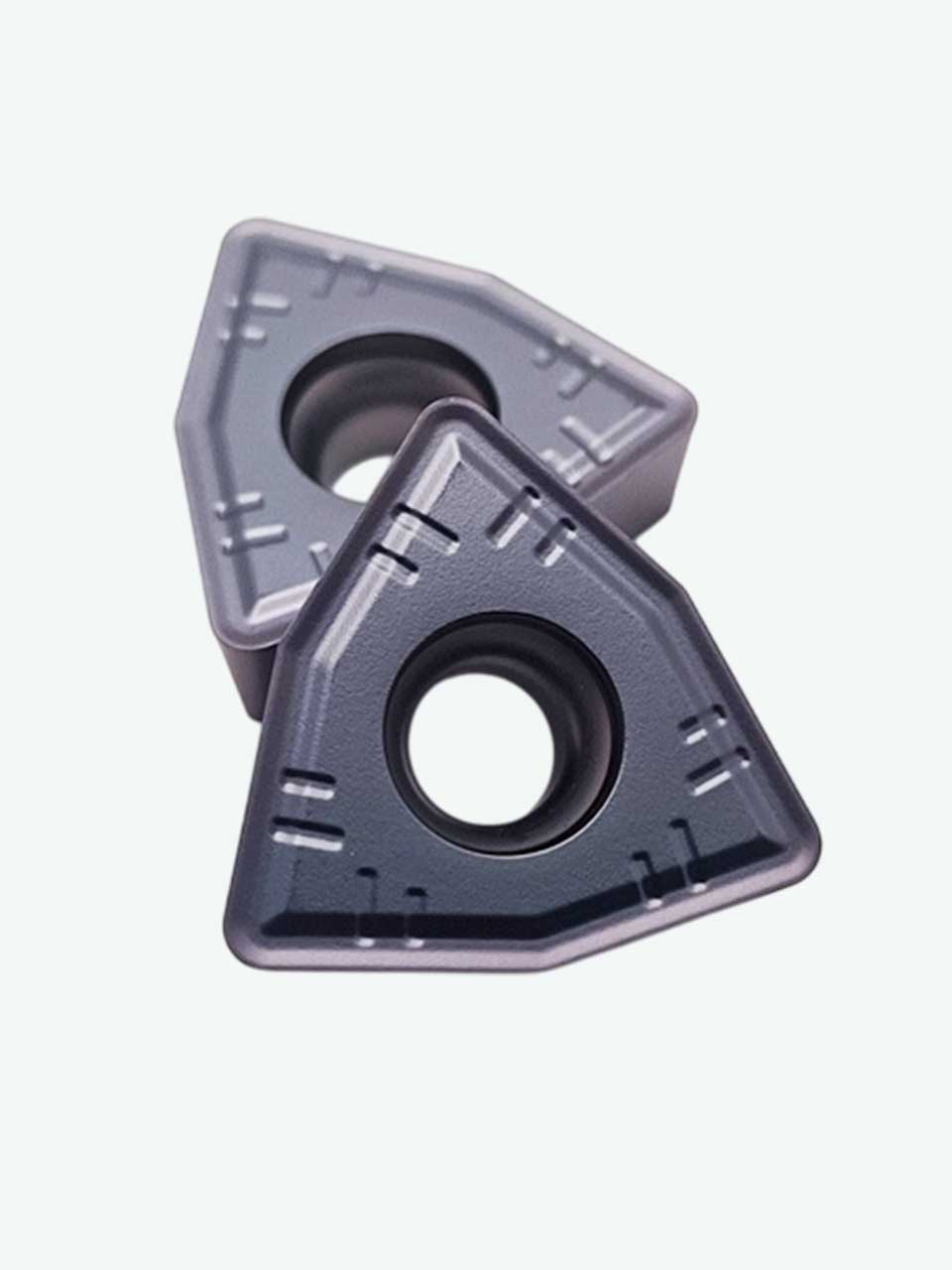

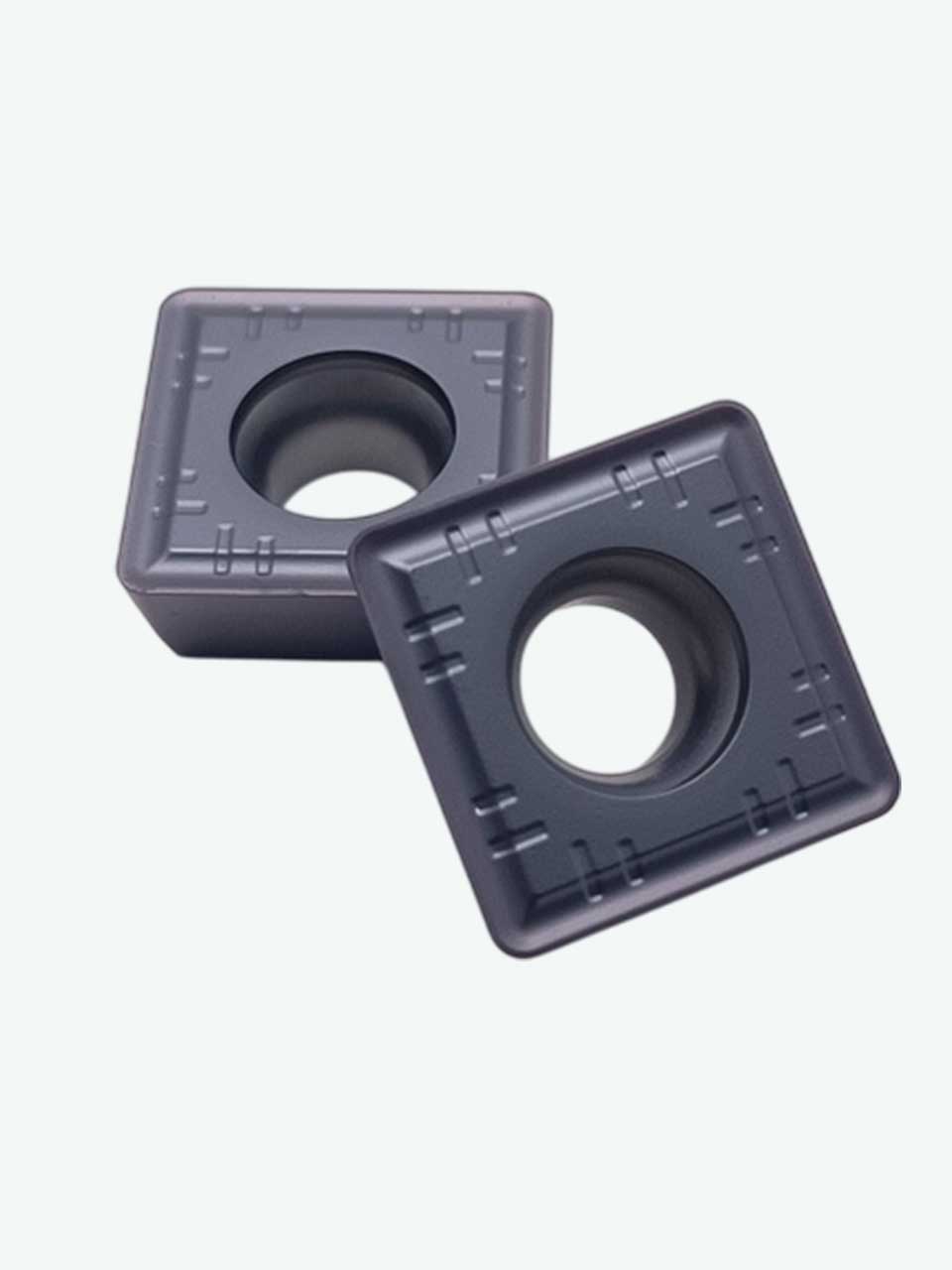

Indexable drilling inserts bridge the gap between conventional twist drills and dedicated deep hole systems, delivering high feed rates at depths up to 5×D. PROEDGE stocks four series: SOMT for high-feed centre cutting, SPMG screw-on style, WCMT triangular inserts, and the 880-series P/C style for large drill bodies. Drill bodies cover 13–60 mm diameter in 0.5 mm steps at L/D-2, L/D-3, L/D-4, and L/D-5. Two insert positions (peripheral + central) share cutting load enabling feed rates 2–4× higher than equivalent solid carbide drills.
Key Features
Grade Selection by Material
| Workpiece Material | Recommended Grades |
|---|---|
| Steel | UT921UT925 |
| Stainless Steel | UT923UT925 |
| Cast Iron | UT927 |
| Non-Ferrous | UN07 |
Insert Designations & Grades
Contact PROEDGE International for current stock availability and pricing on specific designations.
How to Order
Send Your Requirement
Share product name, quantity, and workpiece material via Quote form or WhatsApp.
Get a Quote in 24h
We respond with pricing, availability, and technical recommendations within 24 hours.
Fast Delivery
In-stock items dispatched same day. Pan-India courier delivery within 2–4 business days.
