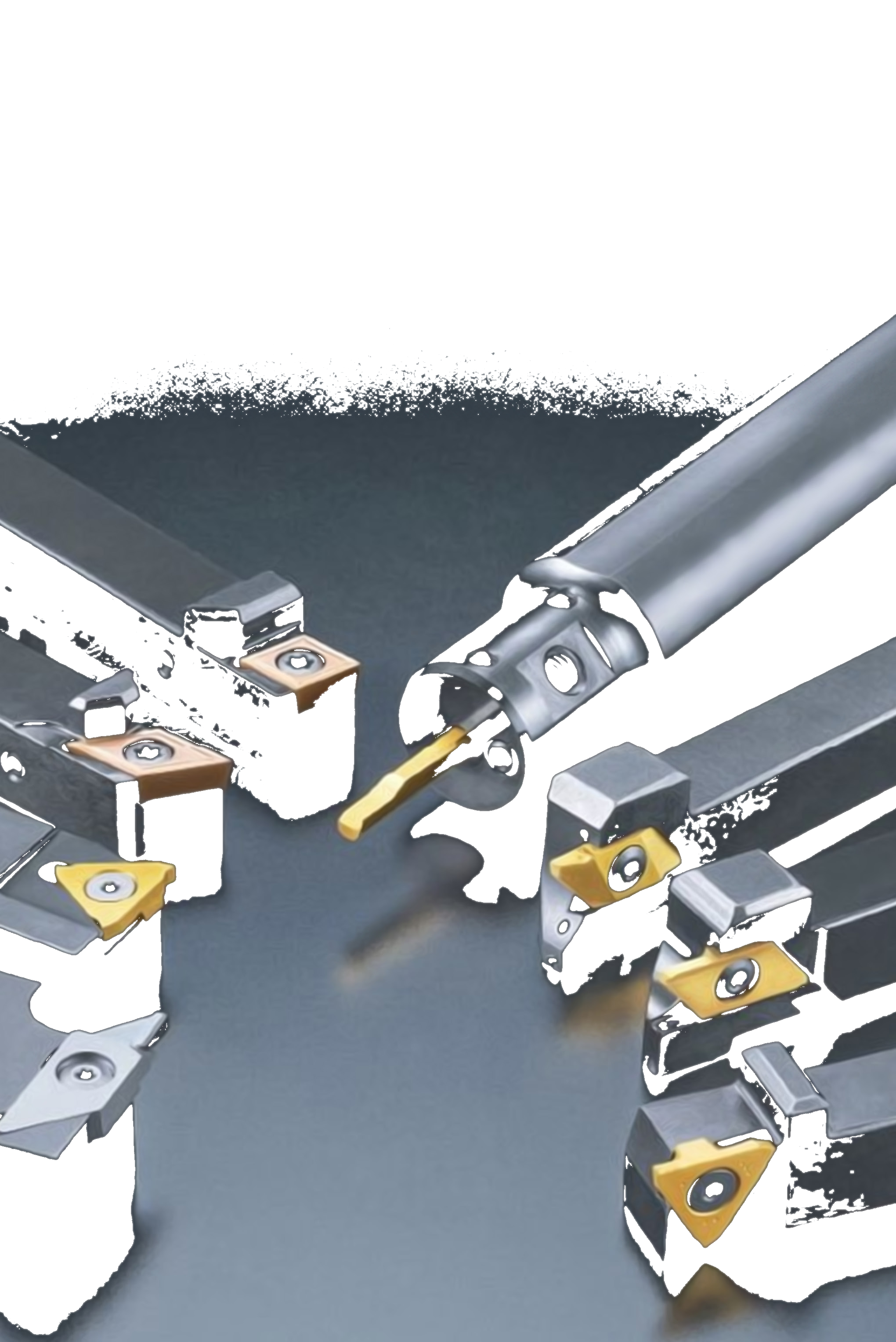

Boring Bars & Internal Tooling
Steel shank, carbide shank, and threading bars
Complete boring bar programme — steel and carbide shank boring bars for all ISO insert styles, internal threading bars SINR/L (5–50 mm bore), and special small-diameter bars. A/B/M-clamp compatibility throughout.
Technical Specifications
Applications
About Boring Bars & Internal Tooling
Internal machining demands a different tooling philosophy than external turning — vibration, overhang, and chip clearance dominate. PROEDGE supplies three boring bar families: steel shank (most economical, adequate to 5×D), carbide shank (vibration-damped, up to 10×D), and special small-diameter bars for bores from 5 mm. All three families use the same ISO inserts as external holders — CCMT, DCMT, TCMT, VCMT, WCMT, TNMG, CNMG, DNMG, WNMG — with A, B, and M clamping. Threading bars SINR/L handle internal thread turning from 5 to 50 mm bore diameter.
Key Features
Holder & Cutter Body Dimensions
| Designation | Description |
|---|---|
| SCLCR/L (steel) | Steel shank, CCMT insert |
| SCKCR/L (steel) | Steel shank, CCMT, 45° approach |
| SDXCR/L (steel) | Steel shank, DCMT, copy boring |
| SDUCR/L (steel) | Steel shank, DCMT insert |
| SDQCR/L (steel) | Steel shank, DCMT, 107° approach |
| STFCR/L (steel) | Steel shank, TCMT insert |
| SVQBR/L (steel) | Steel shank, VCMT, 107° approach |
| SVUNR/L (steel) | Steel shank, VCMT insert |
| SCLCR/L (carbide) | Carbide shank, CCMT insert |
| STUPR/L (carbide) | Carbide shank, TCMT insert |
| SDQCR/L (carbide) | Carbide shank, DCMT insert |
| SWUBR/L (carbide) | Carbide shank, WCMT insert |
| SINR/L 5–50 | Internal threading bar, 5–50 mm bore |
| ACLNR/L (boring) | A-clamp boring bar, CNMG insert |
| BWLNR/L (boring) | B-clamp boring bar, WNMG insert |
| MCLNR/L (boring) | M-clamp boring bar, CNMG insert |
| S10K SWUBR 06-06 | Special small dia bar, WBMT insert |
All dimensions in mm. Contact us for OAL variants and special-order lengths.
